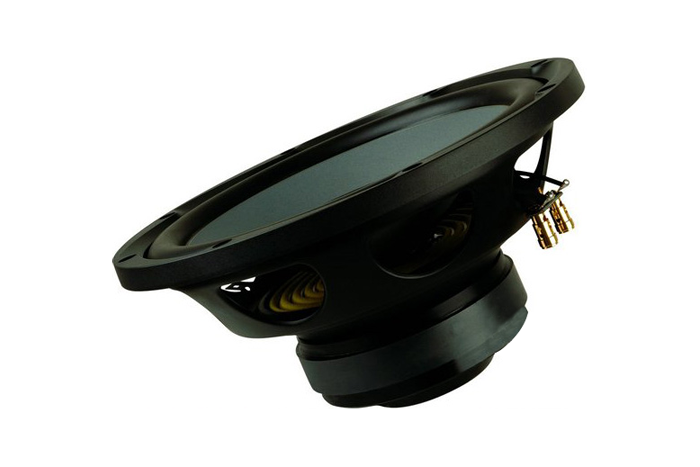

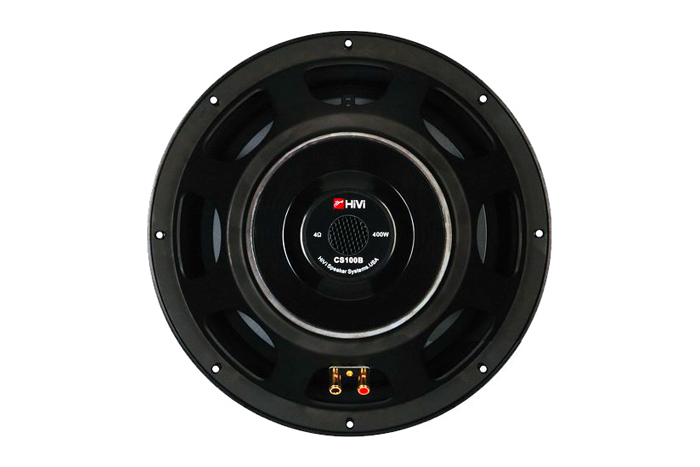

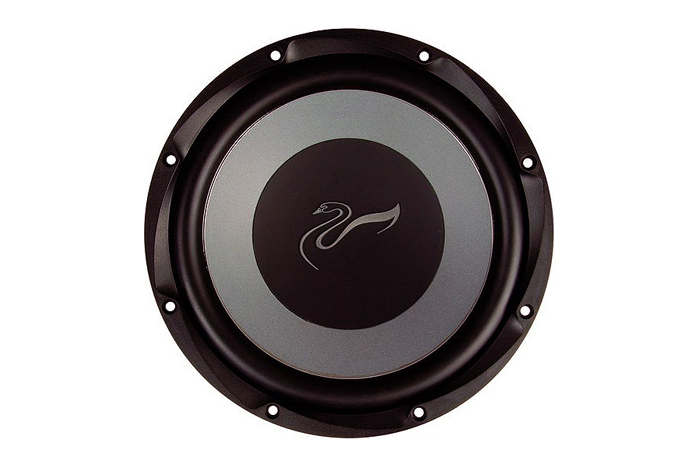

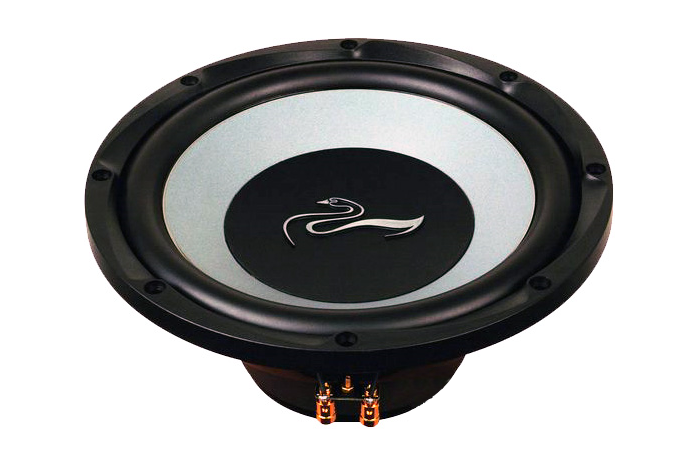

HiVi CS100B

Product Name

  • Model :CS100B
  • Brand :HiVi
  • Specificity :스완 10인치 서브우퍼, 스완 엔트리 모델 / 탄탄한 베이스

Product description

스완의 CS100B 서브우퍼입니다. 10인치 서브우퍼로 탄탄한 베이스가 장점이며, 작음힘으로도 무리 없이 돌아가는 서브우퍼입니다. 스완 엔트리 모델로 가성비 훌륭한 제품입니다.

General Data
Power (RMS/MAX) :
200 W / 400 W
Frequency response :
32 Hz ~ 500 Hz
Sensitivity :
87.5 dB (1w / 1m)
Impedance :
4 Ohm
Total Q Factor (Qts) :
0.63
Equivalent Cas air load (Vas) :
31 L

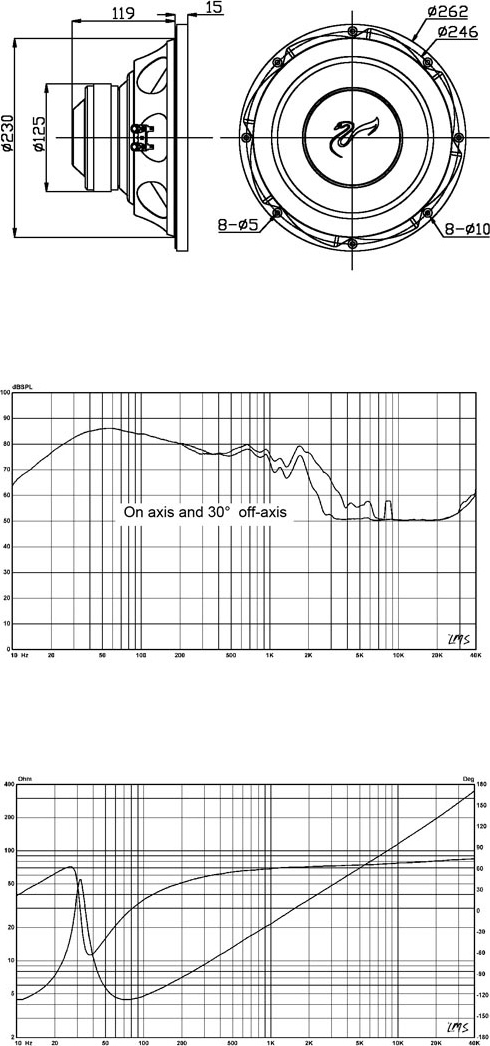

Cutout diameter :
Φ 246 mm
Mounting depth :
118 mm
Recommended Sealed Box Vol :
18 Liters; F3: 43 Hz
Recommended Vented Box Vol :
35 Liters; F3: 33 Hz
Port :
Φ 75 mm x 200 mm
Nominal Impedance (Z)(Ω) :
4
Resonance Frequency (Fs)(Hz) :
31
Nominal Power Handling (Pnom)(W) :
200
Sensitivity (2.83 v / 1 m)(dB) :
87
Weight (M)(Kg) :
3.4
VC Diameter (mm) :
50
DC Resistance (Ω) :
3.8
VC Length (H)(mm) :
27
VC Former :
SV
VC Frame :
Kapton
Magnet System :
Outside
Magnet Former :
Ferrite
Force Factor (BL)(N / A) :
12.0
Gap Height (He)(mm) :
8.0
Linear Excursion (Xmax)(mm) :
9.5
Suspension Compliance (Cms)(uM / N) :
182
Mechanical Q (Qms) :
9.83
Electrical Q (Qes) :
0.70
Total Q (Qts) :
0.65
Moving Mass (Mms)(g) :
141.8
Effective Piston Area (Sd)(m2) :
-
Equivalent Air Volume (Vas)(L) :
34.2
Cabinet Type :
Sealed
Recommended Box Volume(Vb)(L) :
30
- 3 dBCut - Off Frequency (F3)(Hz) :
38
