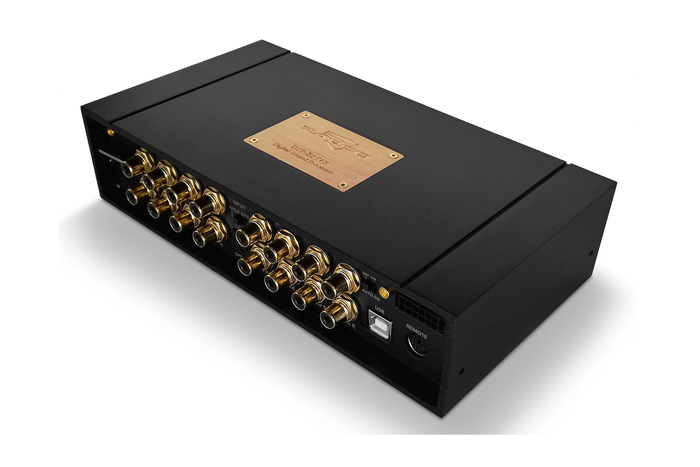

ZAPCO DSP-Z8 IV II

Product Name

Model :DSP-Z8 IV II
Brand :ZAPCO
Specificity :BT 스트리밍 기능이있는 8 채널 DSP

Product description

DSP-Z8 IV II 시리즈는 가능한 최고의 프로세싱에 대한 잠재력을 크게 확장시켰으며 토스 링크 광입력은 헤드유닛 또는 휴대용 HD 플레이어에서 디지털 신호를 허용 하지만 IV II 시리즈는 거기서 멈추지 않습니다.
Z8 IV II 장치는 디지털 블루투스 스트리밍을 제공 하므로 디지털 음악을 스트리밍 할수 있으며 대화식 디지털 포트로 더욱 다양한 옵션을 확장할수 있습니다.
또한 입력소스를 변경하고, 메모리 프리셋을 변경하고, 마스터 볼륨을 제어하고 시스템의 베이스 앰프의 출력을 제어할 수 있도록 포함된 Dash 리모트의 제어 입력을 허용합니다.
그리고 더 많은 제어를 위해 3 "디지털 터치 스크린 리모컨으로 업그레이드 할수 있으며 통합 리모컨으로 외부 HD 플레이어를 연결할수 있습니다.

Specification

DSP Processor: Cirrus Logic CS47048

Power: 150 MHz/32 bit/48 KHz

8-Channels

ADC: Cirrus Logic CS5368 24 bit/192 KHz

ADC Dynamic Range/THD: 114 dB/-105 dB

DAC: Cirrus Logic CS47048 32 bit/192 KHz

DAC Dynamic Range/THD: 108 dB/-98 dB

Low level (Pre)/Sensitivity: 8/1-5 VRMS

High Level (Spk In)/Sens.: 6/2-20 V

AUX Inputs/Sensitivity: 1/0.2-4 VRMS

Optical IN: 24 bit-192 KHz

Output Ch. RCA/Sensitivity: 8 / 4 VRMS

Freq. Response (-3dB): 10 Hz - 22.5 KHz

S/N Ratio Digital Input: 110 dBA

S/N Ratio Analog Input: 106 dBA

THD+N Digital Input: 0,002 %

THD+N Analog Input: 0,005 %

Crosstalk at 1 Khz: 90 dB

F/R EQ: 1-6 ch Gr. & Par./31 poles

Effect EQ: 7-8 ch Gr. & Par./11 poles

Mute/Solo: Yes, each channel

Time Align. (Range/Steps): 0/15 ms / 0.02 ms

Max Delay (Cm/Steps): 515 cm / 0.68 cm

Polarity: 0/180°

Display (included): 1” LCD

Display (optional): 3” LCD Touch-Screen

Bluetooth Streaming

PC/Display Connection: USB/6-pin Mini DIN

Unit Dimensions: 210(L) x 125(W) x 48(H)

Display Dim.: 111(L) x 49(W) x 16(H)

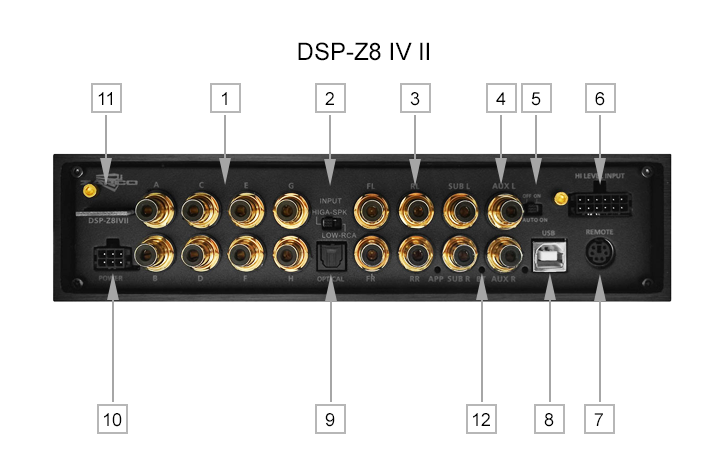

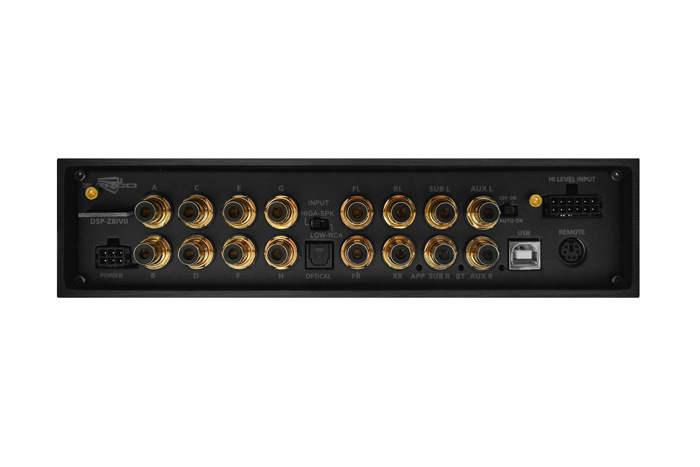

1. 8 channels of RCA outputs

2. Switch for high level/low level inputs

3. 6 channels of RCA inputs for the MAIN source

4. 2 channels of RCA inputs for an Auxiliary source

5. On/Off switch for the auto-on function

6. High level OEM input connector

7. Dash remote port

8. USB connector for PC control

9. Optical port for digital input

10. Main power connector for +12V Power (yellow), Ground (black), Turn-on from head unit (red), and +12v for amplifier turn-on (blue)

11. Bluetooth antenna for Digital streaming and control

12. BT indicator-blinks while looking for a Bluetooth device, then goes solid when it is paired

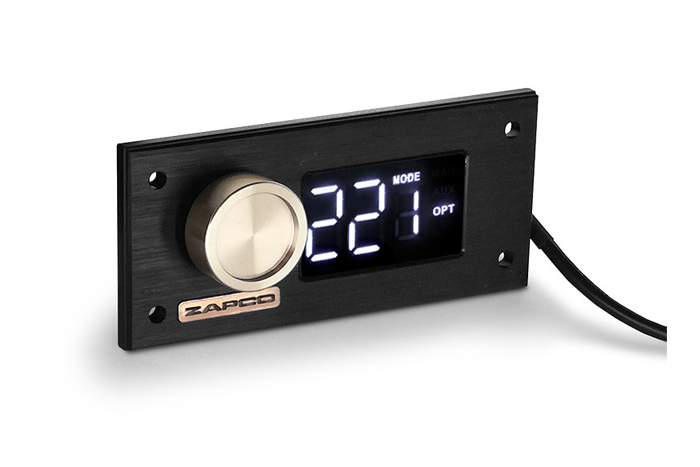

1. Unlike many remotes, the remote of the DSP-Z8 IV series is an integral part of the device. First it is a volume control, which is a must when you are using a full gain digital input. Secondly, the volume control is also a control for the bass output. If you are using Channels 7/8 for the bass, as most users do, you can push the volume control in one time and the bass level will begin to flash and it becomes an output level control for channels 7/8.

2. The readout normally gives you the volume level. If you push the Volume knob one time it gives you the bass level. If you don’t make any adjustments for about 15 seconds, it will return to reading volume.

3. If you push the Volume knob 2 times you will see only MODE and the mode number flashing. Mode is the memory preset. In mode function, the volume knob cycles through the presets that have been stored. Dial to the preset you want the push the volume knob once to get input source selection or twice to return. Any preset positions not used will not show up in the MODE choices.

4. If you press the volume knob three times you will enter Source Selection and you can choose Main, BT (Bluetooth Streaming), Aux, or Opt (Optical) by turning the volume knob to the input you want.
