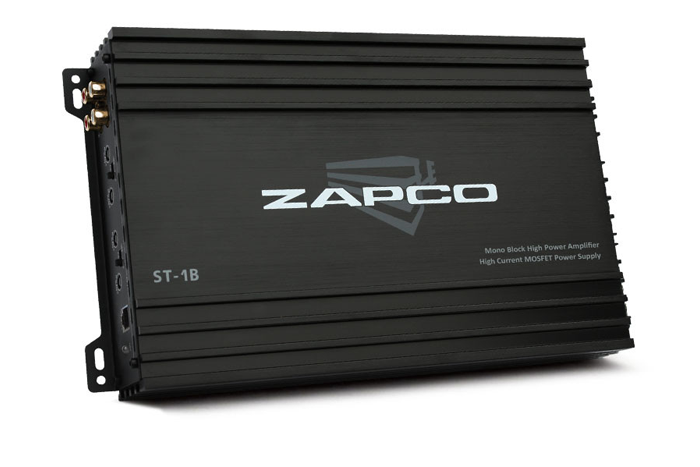

ZAPCO ST-1B

Product Name

• Model :ST-1B
• Brand :ZAPCO
• Specificity :모노베이스 앰프

---

Product description

새로운 ST-B 앰프는 매일 사용하는 앰프에서 훌륭한 사운드로 고품질의 제품을 제작할 수 있다는 증거입니다.

Features and Functions

Mono Class-AB Amplifier

MOSFET power supply

RCA input and output

Variable Inputs Gain Control

Variable LP Electronic Crossover

Variable Bass Boost

Phase 0-180°

Subsonic filter

Specification

Power @ 4Ω: 200 watts

Power @ 2Ω: 300 watts

THD @ Rated Power < 0.2%

Signal to Noise Ratio > 97dB

Input Sensitivity .25v to 5v

Dimensions in mm: 182(W) x 52(H) x 280(L)

Overall: 182(W) x 52(H) x 310(L)

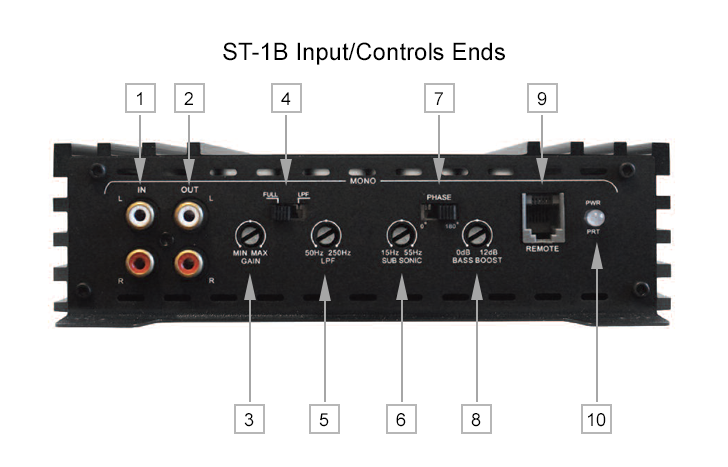

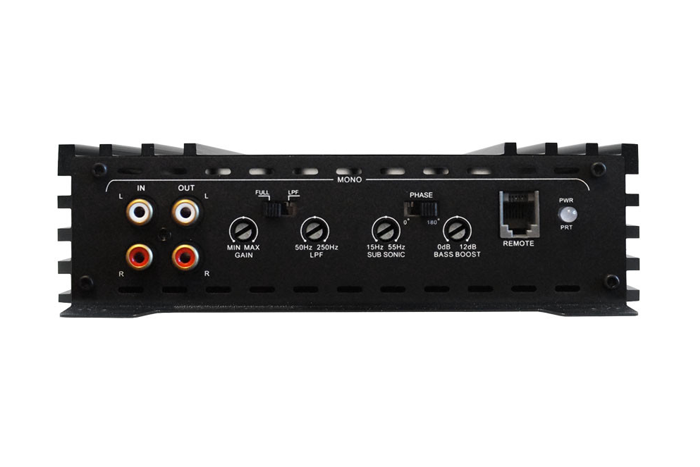

1. RCA inputs

2. RCA outputs

3. Variable gain control (set to minimum before initial turn-on)

4. Crossover function selector for full range of low pass

5. Low Pass frequency control

6. Sub Sonic filter

7. 0-180° Phase control

8. 0-12 dB Bass boost control

9. Remote control port

10. Power/protect LED
