Rockford Fosgate Marine TM400X4ad

Product Name

  • Model : TM400X4ad
  • Brand : Rockford Fosgate
  • Specificity : 마린 400W 4 채널 앰프

Product description

TM400X4ad는 400W급 4채널 앰프로서, 고효율 Class-AD 기술과 모터스포츠 및 해양용으로 설계된 맞춤형 코팅 PC 앰프입니다.

400W 파워 4채널 초소형 앰프 TM400X4ad는 Rockford Fosgate의 독점적인 Class-AD 기술을 기반으로 제작되었으며, 4옴 임피던스와 2옴 임피던스에서 동일한 출력을 낼 수 있는 Constant 파워를 특징으로 한다. 자동 켜짐으로 로우 레벨 및 하이 레벨 입력을 통해 유연한 차량 통합이 가능합니다. 탑 마운트 컨트롤을 사용하면 내장된 크로스오버 및 C.L.E.A.N. 입력/출력 클립 감지 회로에 쉽게 액세스할 수 있습니다. 이중 팬 강제 유도를 통한 3단계 열 잠금 압출은 모든 것을 시원하게 유지하는 동시에 열/보호 스키마가 실시간으로 앰프를 보호합니다.

• Rockford Fosgate proprietary Class AD technology
• 4/2 Ohm muti-impedance Constant Power
• Differential inputs with high level auto turn-on feature
• 8 AWG power/ground connector w/ upgraded RCA connectors
• Remote-Out feature when using high level inputs
• 2/4 channel input switch
• 4 Ohm bridged capable
• C.L.E.A.N. input/output clip detection and indicator LEDs

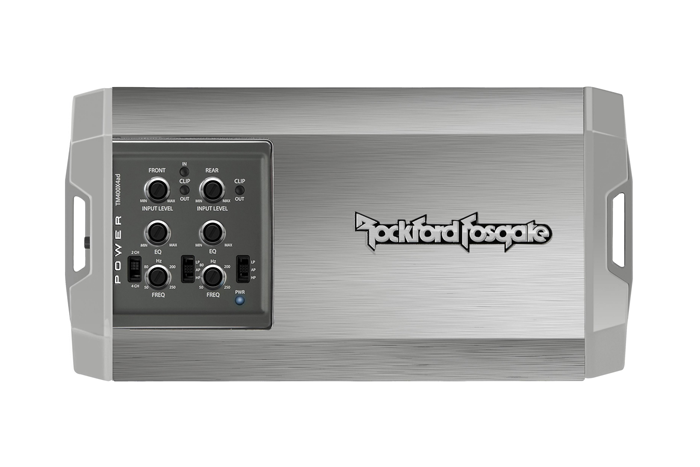

• Top mounted controls
• Dual fan cooled
• Real time thermal sensing
• Dual extruded heat sinks
• Discrete surface mount technology

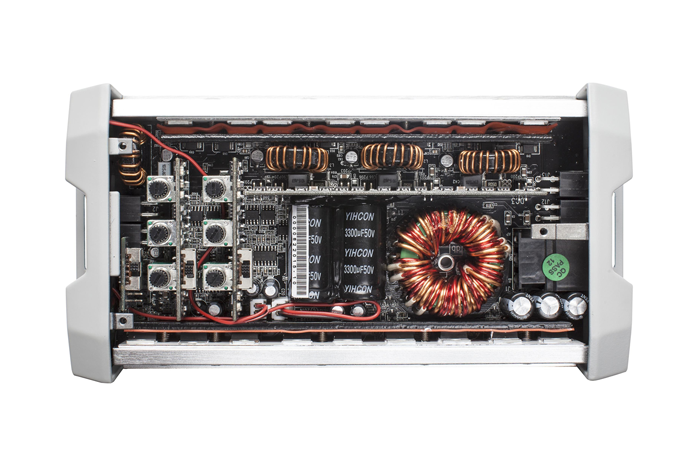

• Marine grade two part epoxy coating on circuit boards
Specifications
CEA-2006 Compliant
CEA-2006 Power Rating
100W x 4 @ 4Ω
≤1.0% THD+N
Cta-2006 Compliant

Number of Channels
4
Total Power(Sum of Rated Power)
400 Watts
Rated Power(RMS Continuous Power)
100 Watts x 4 @ 4-Ohm
100 Watts x 4 @ 2-Ohm
100 Watts x 2 @ 4-Ohm Bridged
Dynamic Power(PVC/PowerCube®)
128 Watts x 4 @ 4-Ohm
152 Watts x 4 @ 2-Ohm
290 Watts x 2 @ 4-Ohm Bridged
Bridgeable
Yes
Front Terminals: Left (+) Right (-)
Rear Terminals: Left (+) Right (-)
Frequency Response
20Hz - 20kHz +/-1dB
Input Sensitivity
150 mV to 12 V
Circuit Topology Class
Class AD
Efficiency (average)
>75%
Total Harmonic Distortion (Thd+Noise)
4-Ohm: <1.0%
2-Ohm: <1.0%

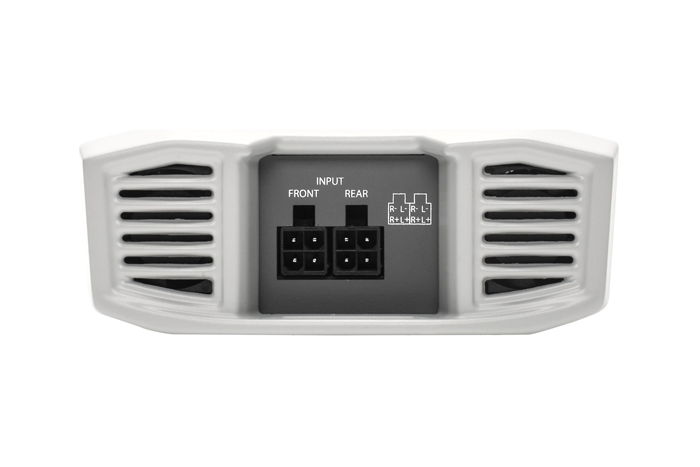

Signal Input
Front High/Low Level Input: 4-Pin harness
Rear High/Low Level Input: 4-Pin harness
Signal Output
-
Tone Controls
Treble: 0 to +14 dB @ 12.5 kHz
Bass: 0 to +18 dB @ 45 Hz
Crossover Controls
High-Pass:
50Hz - 250Hz @ 12dB/Octave Butterworth
Low-Pass:
50Hz - 250Hz @ 12dB/Octave Butterworth All-Pass: Yes
Specifications
Remote Controls
-
Visual Indicators
Power: Blue LED
Protect: Red LED
Input Clip: Red LED3
Output Clip: Blue/Violet/Red LED1,2,3

LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Power Wire Gauge
8 AWG
Power Input Connector
Detachable Compression Terminal
Speaker Wire Gauge
16 AWG

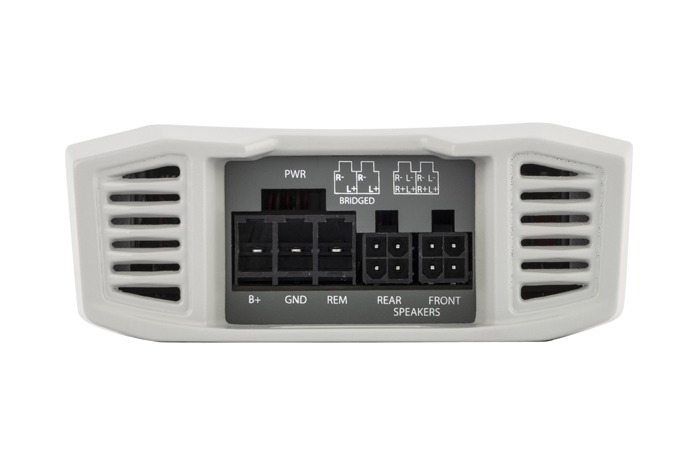

Speaker Output Connector
Front: 4-Pin Harness
Rear: 4-Pin Harness
Cooling
Dual Fan Cooled
Heatsink
Extruded Aluminum
Operating Voltage
9 - 16 VDC
Recommended Fuse (Not Included)
60A
Average Current Draw (13.8V Music)
28A
Max. Current Draw (13.8V Sinewave)
55A
Suggested Alternator
75A
Dimensional Diagram

Dimensions (H x W x D)
1.6 x 4.3 x 8.3 (in.)
4.1 x 10.8 x 21.1 (cm)
Shipping Weight
3.4 Lbs. (1.54 Kg.)
