ZAPCO Z-150.4 SP

Product Name

• Model :Z-150.4 SP
• Brand :ZAPCO
• Specificity :4 채널 슈퍼 파워 클래스 AB 앰프

---

Product description

Zapco는 새로운 Z-Series SP에는 이제 동일한 앰프를 기반으로하는 Zapco Competition 시리즈 제품이 4 개 있습니다. Z-AP, Z-SP, Z-II 및 ZX 앰프 경쟁 시리즈 앰프의 사양은 변경되지 않지만 각각 특정 목적으로 조정되었습니다.

Features and Functions

4-Channel Street Power competition amplifier

Wide range dual crossovers allowing band-pass filtering

Variable bass boost

Variable subsonic filter

Ducted Air fan cooling system

Space-age technology for cooler output devices

Proprietary gold panel mount RCA Connectors

Dash mount remote gain control available

Specification

Power @ 4Ω: 4 x 165 watts

Power @ 2Ω: 4 x 275 watts

Power @ 4Ω Bridged: 2 x 550 watts

THD @ Rated Power < 0.05%

Signal to Noise Ratio > 104dB

Channel separation > 60dB

Frequency Response 10Hz to 30,000Hz ±1dB

Input Sensitivity .25v to 8v

Dimensions in mm: 241(W) x 62(H) x 444(L)

Overall: 241(W) x 62(H) x 479(L)

매우 무거운 Zapco 독점 RCA 커넥터 PCB에 직접 납땜

낮은 ESR 캡 및 새로운 LME 49723 0p 앰프

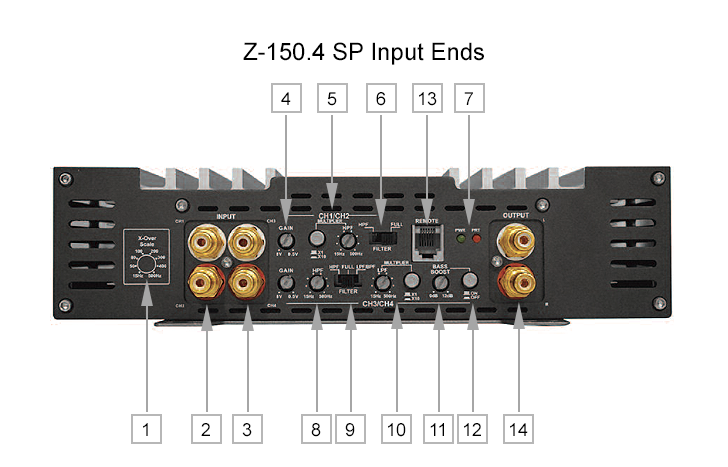

1. Crossover frequency scale*

2. Front (Ch1/2) RCA inputs

3. Rear (Ch2/4) RCA inputs

4. Front and rear variable gain controls

5. Fnt. (Ch 1/2) Multiplier and HPF frequency control*

6. Crossover mode select (HPF or Full)

7. The power on (green) LED and the protect(red) LED

8. Rear (Ch3/4) HPF frequency control

9. Rear crossover mode switch*

10. Rear (Ch3/4) Multiplier and LPF frequency control*

11. Variable bass boost control 0dB~12dB

12. Variable bass boost on/off

13. Port for the optional bass control

14. Auxiliary pass-through RCA output*
