Elate Crossovers

Product Name

  • Model : Elate Crossovers
  • Brand : morel
  • Specificity : Crossover

Product description

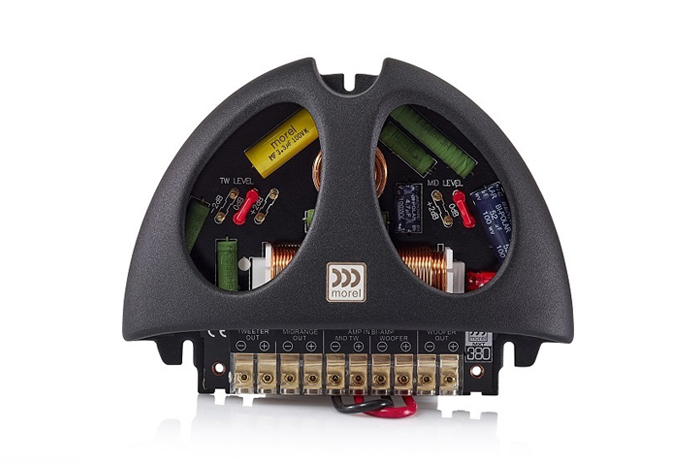

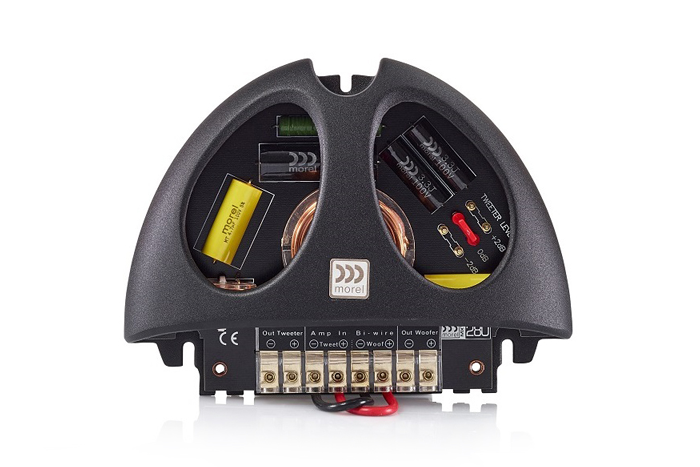

Sometimes the option of going fully active is just not possible and that is why Morel offers the newly designed MXT-280C and MXT-380C passive crossover networks. Specifically designed for the new Elate Carbon series, both offer audiophile-grade components and efficient electrical design to minimise coloration and distortion.

Both the MXT-280c and the MXT-380c have the option of Bi-wire / Bi-amplification as well as tweeter adjustment and mid adjustment on the 3-way MXT-380.

Specifications

Elate Carbon MXT280C
Configuration
2-Way
Crossover Point
(W) 2,500 Hz/12dB

(M) Not Applicable

(T) 2,500 Hz/12dB
Crossover Controls
Tweeter +/- 2dB
Sensitivity
Mid – N/A
Wiring Options
Bi-wire / Bi-amp
Elate Carbon MXT380C
Configuration
3-Way
Crossover Point
(W) 450 Hz/12dB

(M) 450 Hz/12dB

(T) 2,700 Hz/12dB
Crossover Controls
Tweeter +/- 2dB
Sensitivity
Mid – 0/-2 dB
Wiring Options
Bi-wire / Bi-amp
